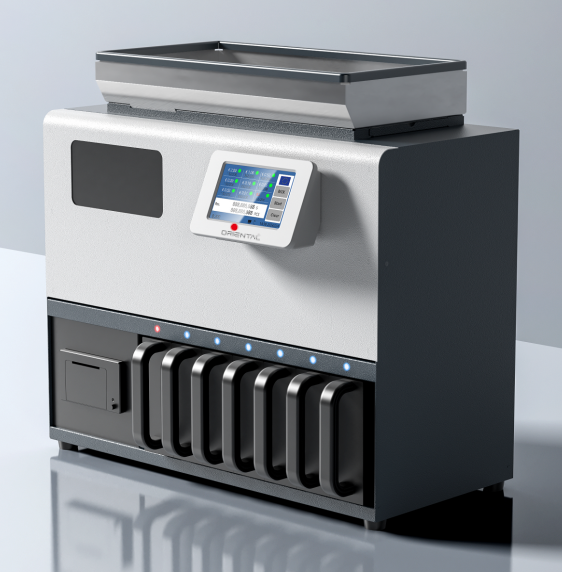

Coin Sorter OR80S

Oriental Intelligent Coin Sorter, With self  Learning Function

  1. Model No: OR80S
  2. Item No:    87108880
  3. Min order: 1 Machine
  4. Accept Min order: Yes
  5. Supply Ability: 800 Units / Month
  6. Country of Origin: China Nanjing
  7. OEM / ODM Available
  8. Lead Time from Factory: 7 Days
  9. CE Approval
  10. Two Years Guarantee.

Description

This Intelligent coin sorter has self-learning function, it is able to count any coin currencies without any mechanical change, it simply take 15 min to learn new currency

1 The third generation of eddy current sensing technology, three-segment coaxial eddy current sensor, dual spectrum. Up to 32 sets of feature points can be collected.
2 Up to 32 sets of reserved coin learning channels.
3 The 5-inch capacitive touch screen is used to give users a better user experience. The external display screen can facilitate users to observe parameters and use operations from all angles.
4 The standard durable foot switch can free the user’s hands and improve the operation efficiency of the whole machine.
5 The large-capacity coin hopper can hold 350-400 coins of 2 Euros at a time.
6 Fully sealed and built-in sound-absorbing cotton can effectively reduce the environmental impact caused by noise during work.
7 The front and back of the device can be opened for user operation and maintenance.
8 There is an LED indicator light prompt above each channel, which is synchronized with the display screen, allowing users to easily
9 Rail stuck coin detection function.
1 Printer/computer RS232
2 External display RJ12
3 Foot switch Aviation 2-pin plug
4 Coin self-learning interface USB-B
5 Upgrade interface USB-A

Specifications

Basic parameters 1 Equipment model OR80S
2 Equipment size 551mm*251mm*424mm (length*width*height)
3 Equipment packaging size 680mm*372mm*590mm (length*width*height)
4 Coin outlet 1 withdrawal coin coin port + 6 real coin ports
5 Equipment net weight 22.5kg
6 Equipment gross weight 32kg
7 Packing method 1 unit/box
8 Coin counting speed 500 coins per minute
9 Identification method Mixed spectrum multi-eddy current metal detection sensor
10 Currency identification 32-channel denomination reserved learning channel
11 Input power 220V, 50Hz / 110V, 60Hz (compatible with 110V-220V power supply)
12 Human-computer interaction 1 480*800 high-resolution 5-inch full-size capacitive touch screen.
13 Human-computer interaction 2 Foot switch, you can start counting and stop at any time.
14 Human-computer interaction 3 Channel LED indicator allows users to clearly know the current status of the coin receiving hopper.
15 Basic functions 1. Mixed counting function 2. Intelligent sorting 3. Preset number stop 4. Print or upload parameters 5. Built-in printer 6. Coin parameter intelligent learning recognition 7. External display (adaptable to 5-7 inches color screen)
Other hardware configurations 1 Pre-selection hopper Standard
2 Foot switch Optional
3 Built-in printer Optional
4 External display Standard 1
5 Coin receiving component (used with cloth pocket) Standard 1
6 Channel box Standard
7 Cloth pocket Standard 1
