Bus Fair Collector

Oriental Intelligent Bus Fair  Collector

  1. Model No: OR BUSC
  2. Item No:    87108899
  3. Min order: 1 Machine
  4. Accept Min order: Yes
  5. Supply Ability: 800 Units / Month
  6. Country of Origin: China Nanjing
  7. OEM / ODM Available
  8. Lead Time from Factory: 7 Days
  9. CE Approval
  10. Three Years Guarantee.

Description

Coin & Note Deposit Machine for Buses
The machine is a device on buses for collecting fares by coins, bank note, cards or QR code with the following advantages:
► Efficiency: Speeds up fare – collection and keeps the bus on schedule.
► Accuracy: Ensures valid coins and accurate money records.
► Convenience: A convenient payment way for passengers without cards.

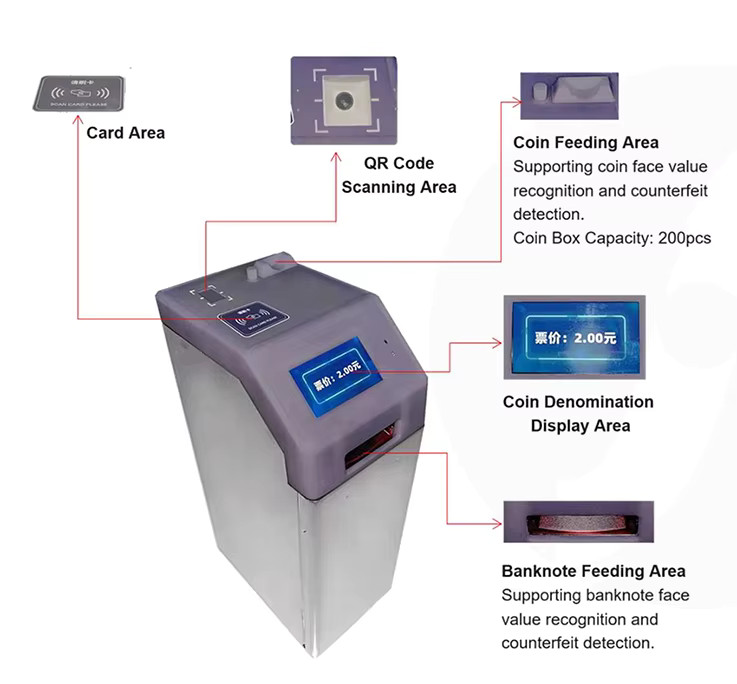

How does the machine work:
The machine has a metal casing. The front has a coin slot sized for valid coins. There’s a display on the top of the machine showing inserted money amount or other messages. And there are inner sensors that use size, weight, etc., to identify the correct coins.

What functions does the machine have:
* Coin Acceptance: It accepts valid coins for fare payment. It makes a sound for successful acceptance.
* Change – giving (if available): Some can give change when a larger – denomination coin is inserted.
* Data Recording: It’s connected to the bus system, recording coin info and money collected for accounting.

Specifications

Specification
Serial Number
Module
Technical Parameters
Remarks
1
Processor
ARM Cortex A7 Processor, with a clock speed of 800MHz; Memory: 512MB; Storage: 8GB; (Operating System: Linux)
Standard
2
Display Screen
4.3-inch Touchscreen Display All-in-One Screen; Supports HDMI and VGA, Resolution: 480×272.
Standard
3
Barcode Scanning
Supports scanning and reading of 1D and 2D barcodes; the minimum barcode precision that can be recognized is greater than 3.9 mil.
Standard
4
Coin Recognition
Supported Denominations: Locally circulating coins. Single coin acceptance.
Standard
5
Banknote Acceptance
Supported Denominations: Locally circulating banknotes. Single banknote acceptance.
Standard
6
Contactless Card Reader
Supports ISO/IEC 14443 Type A & B, Mifare cards, and complies with the qPBOC specification.
Standard
